pureAIR MCI SynAIRgPure 2.0 HVAC
pureAIR MCI SynAIRgPure 2.0 HVAC

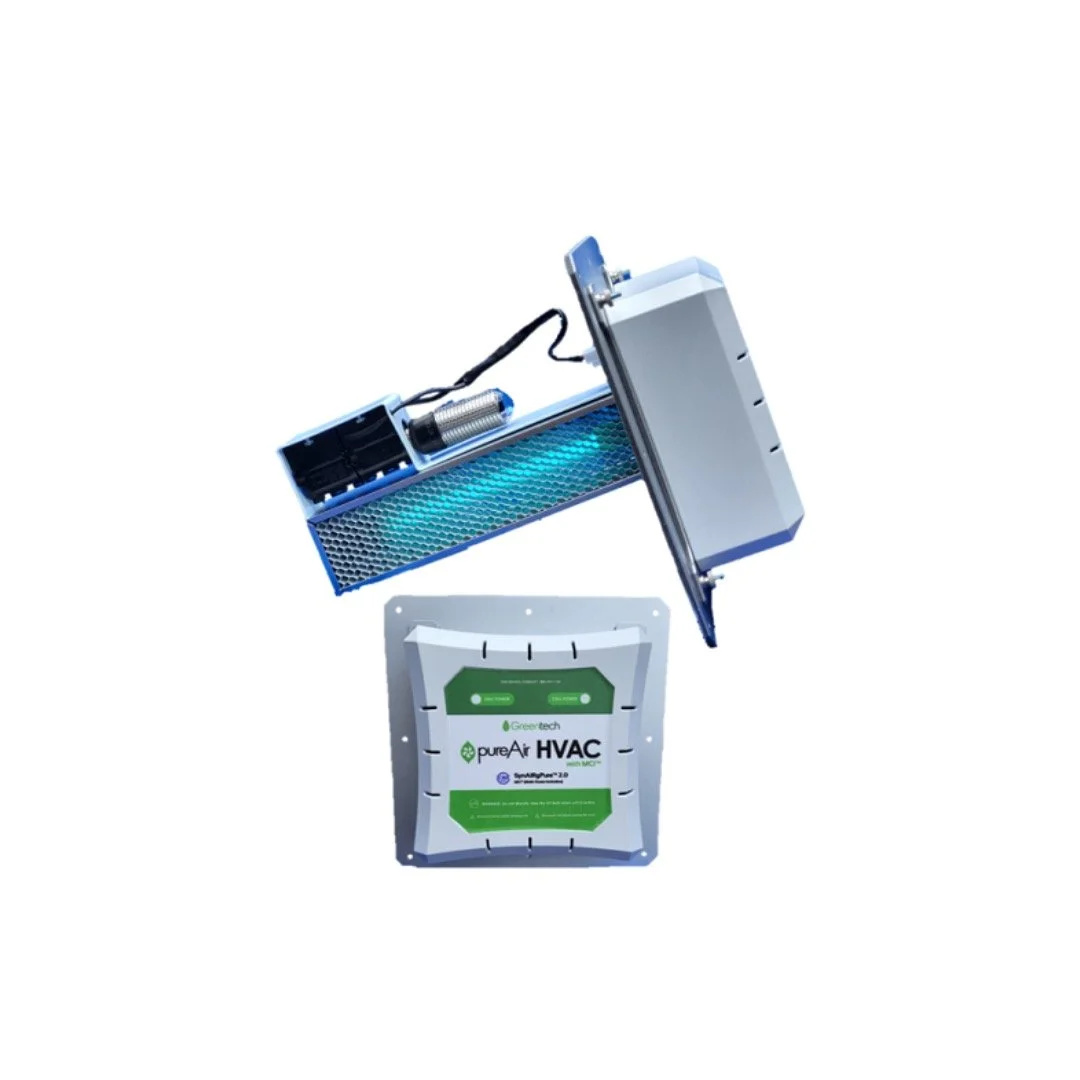

The pureAIR MCI SynAIRgPure™ 2.0 HVAC Probe is designed to be fully customizable to provide the power you need for your environment. The basic residential unit (16K) can be customized to the load level of the environment and converted to a more powerful residential or commercial unit with the addition of DBI cells.
Proactive Technology Attacks Pollutants in the air and on surfaces
The HVAC-mounted MCI SynAIRgPure 2.0 probe is a new generation air purification enhancement system designed to work with existing purification technology to reduce odors, smoke, and a broad spectrum of indoor air and surface contaminants while cleaning the internal HVAC equipment and ductwork.
PCO (Photo-Catalytic Oxidation) Technology promotes a process that turns moisture in the environment into products that continuously clean your space. The PCO cell with UV lamp is great for getting rid of VOC's and significantly increases the amount of area that may be covered by this product, however, actual coverage is dependent on many variables including, but not limited to: air flow, cubic footage, contamination level, surface finishes, age of the structures, air infiltration, and supply distribution.
The optional MCI Multi-Cluster Ionization DBI Cell further increases air purification capabilities by adding the benefit of clustered ionization. This process creates additional oxidizers while also charging particulates in the air, causing them to clump together until they fall out of your breathing space.
MCI™ (Multi-cluster Ionization) Technology synergistic combination of effective components is the key to its operation and is so effective that it does not require ozone to reach efficacy. Ozone producing UV lamps are an optional upgrade.
MCI™ technology is completely safe for humans and animals and effectively destroys mold, mildew, bacteria, viruses, odors, volatile organic com pounds (VOCs and mVOCs) the odors associated with them.
Applications
Ideal for any indoor environment where air quality is a concern, such as:
Residential Homes
Schools, Day Care facilities
Business facilities
Nursing homes, Hospitals
Large Commercial Environments
Recreational spaces (art/dance/music studios, Condos)
RV's, Motor Homes
Benefits
Cleans your environment - and the System
Helps keep duct systems free from contaminants (increasing oxidizers may be needed for harsh environments)
Reduces Bio-nesting
Eliminates/reduces mold, bacteria, and the odors associated with them
Provides a cleaner “A” coil and, therefore, provides more Energy Efficiency (in return plenum)
Reduces “A” coil cleaning and maintenance (25,000 hr. Lamp and Dielectric Barrier Ionization Cells)
Provides less frequent filter changes
Installation Recommendations
This unit is designed to be installed into an existing HVAC system, and used as a virtually maintenance-free enhancement to current air purification technology.
SUPPLY: The unit should be installed after the air handler in the HVAC system in the supply plenum sized to match the HVAC equipment coverage area.
RETURN: An additional pureAir HVAC unit is recommended in the Return Plenum for added protection and to help keep the internal HVAC parts clean.
This dual installation provides cleaning power to the internal equipment and the downstream duct system reducing microbials and other contaminants. The probe in the return air plenum eliminates the need for germicidal lamps shining on the evaporator coils.
Factors listed below should be considered when properly sizing the product to an indoor living environment:
* Number of Occupants
* Pets or Animals
* Landscape Features
* Carpeting vs. Tile vs. Wood Flooring
* Leather vs. Fabric Furniture
* Draperies
* Air Flow and Ventilation
* Placement of Supply Registers
* Number and Placement of Return Registers
* Recent Renovations or Additions
* Use of the Building (Commercial/Residential)
* Majority Age of Occupants
* Air Infiltration Concerns
* Nature of the Contents
* Building Use by Hours
* Cleaning Schedule and Maintenance
* Turnover Traffic Level
* Type of Ductwork
An opening of 4” diameter will need to be cut into the existing duct work to install the unit properly. The unit is powered by connection to 24VAC (not thermostat circuit) from HVAC System or 24VDC from 100-240VAC transformer (included).
